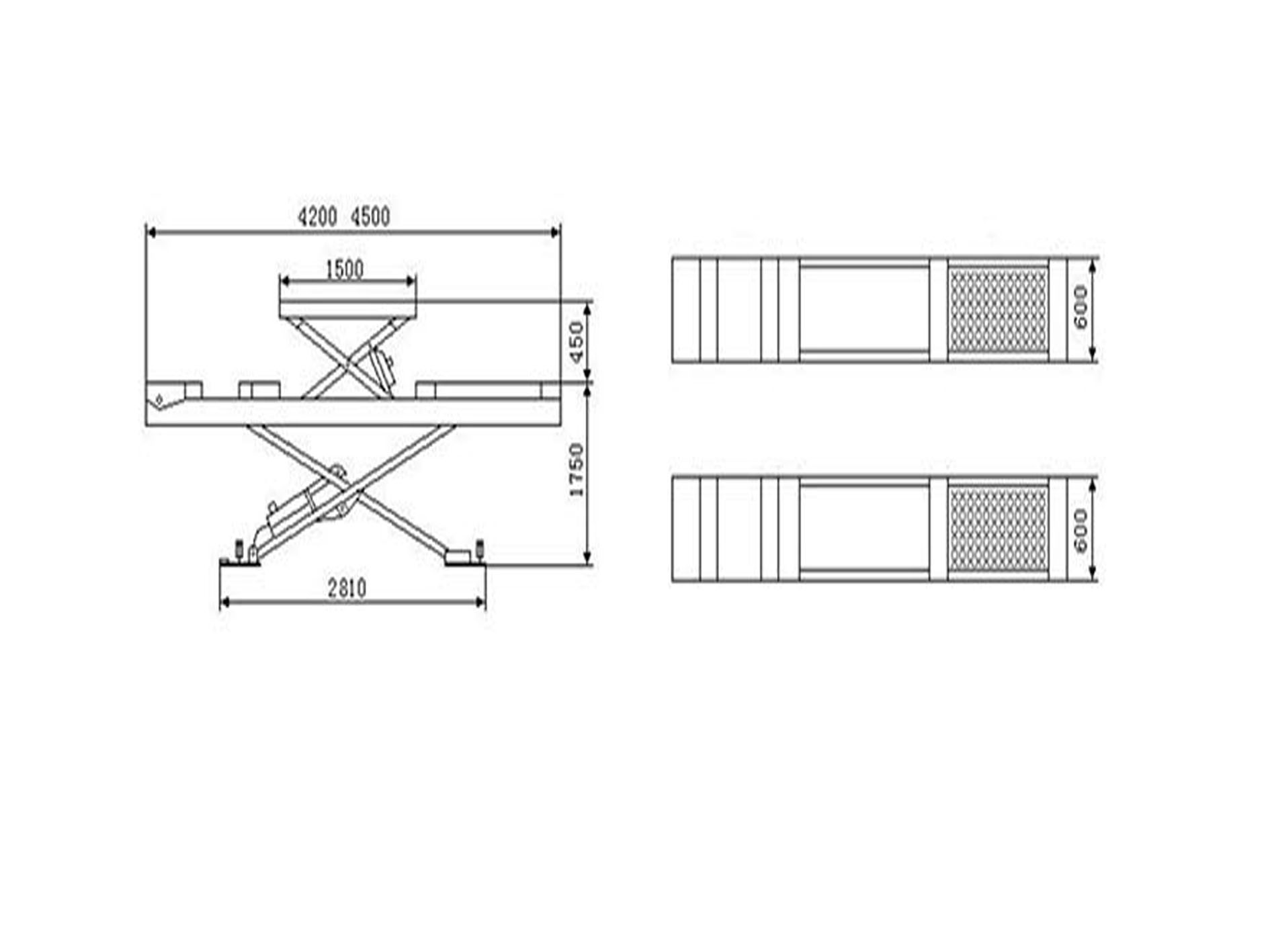

Technical Parameter
Capacity---------------------------------------------------4000kg
Main lifting height--------------------------------------1800mm
Jack lifting height-----------------------------------------450mm
Main lifting time--------------------------------------------1.2/min
Jack lifting time-------------------------------------------------1.2s
Platform length-------------------------------4200mm/4500mm
Platform width----------------------------------------------600mm
Motor power-----------------------------------380V/220V/2.2KW
Rated oil pressure------------------------------------220KG/cm²
Air supply------------------------------------------------6~8kg/cm²
Equipment weight----------------------------1780KG/1820KG
